South RTK Base & Rover

South GPS RTK Base & Rover kit

£7,500.00
In stock
SKU
SOUTHRTK

This south RTK GPS system is a full base and rover kit that consists oF 2 X G1C acting as base rover and includes tablet with field genius software

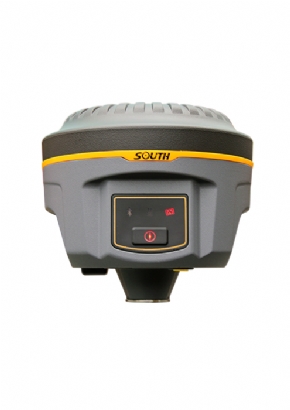

GALAXY G1C

GPS|GLONASS|BEIDOU|GALILEO
8GB MASS STORAGE
SOUTH,TRIMTALK PROTOCOLS
BLUETOOTH 4.0|NFC CHIP

POWERFUL NEW BLUETOOTH MODULE

Equipped with bluetooth 4.0 module, which supports receiver to work well with smartphone and tablet etc, also making bluetooth communication faster and more stable.

FULL SATELLITE CONSTELLATIONS SUPPORT

Equipped with most advanced GNSS boards, SOUTH Galaxy G1 c system can track most signal from all kinds of running satellite constellation, support B1, B2, B3 signal from BeiDou, and E1, E5a, E5b signal from Galileo.

NFC FUNCON ̀

The internal NFC module can make the complicated bluetooth communication more simple and easier.

ADVANCED DATA-LINK MODULE

Integrated with new and excellent datalink system, SOUTH Galaxy G1 c is compatible with current radio protocols in the market, also supports all kinds of network types to access CORS seamlessly.

G1C SPECIFICATION:

Signal Tracking

Channels

496 channels

GPS

L1 C/A, L2C, L2P, L5

BeiDou

B1, B2, B3

GLONASS

L1C/A,L1P, L2C/A,L2P

Galileo

E1,E5a,E5b

QZSS

Reserved

SBAS

WAAS, EGNOS, MSAS, GAGAN

Performance Specifications

Cold start

<50s

Warm start

<45s

Hot start

<15s

RTK Initialization time

typically <10s

Signal reacquisition

<1.5s

Initialization reliability

typically>99.9%

Positioning Specifications

Post Processing

2.5 mm+1 ppm Horizontal

5 mm+1 ppm Vertical

Single Baseline RTK

8 mm + 1 ppm Horizontal

15 mm + 1 ppm Vertical

E-RTK (<100km)

0.2m + 1 ppm Horizontal

0.4m + 1 ppm Vertical

DGPS

Horizontal: 0.25m+1ppm Vertical: 0.5m+1ppm

SBAS

1 m 3D RMS

Standalone

1.5 m 3D RMS

Communications

I/O port

5-pin LEMO external power port +RS232

7-pin LEMO RS232 + USB

1 network/radio data link antenna port

SIM card slot

Radio

Integraded internal radio 1W/2W/3W

External radio 5W/35W

410-470MHz Trimtalk450s, TrimMark3, PCC EOT, SOUTH

Wifi (optional)

802.11 b/g Standard; access to the internal webserver; brodcast and receive differential data via wifi

Cellular

WCDMA, GPRS/EDGE, CDMA2000/EVDO , 4G modem(TDD-LTE,FDD-LTE)

Bluetooth

BLEBluetooth 4.0, Bluetooth 2.1+EDR standard

NFC (Optional)

Realizing close range (<10cm) automatic pair

Data Format

Correction data I/O

RTCM 2.X, 3.X, CMR(GPS only), CMR+(GPS only)

Position data output

-ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK PTNL, AVR PTNL, GGK

Network protocol

VRS, FKP, MAC, supporting NTRIP protocol

Environmental

Working temperature

-40℃ to +80℃

Storage temperature

-55℃ to +95℃

Humidity

95% no condensation

Weight

970g

Waterproof

IP67

Shock and Vibration

withstand 2m pole drop onto the cement ground naturally

Electrical

Power consumption

2W

Memory

8 GB

Use interaction

Operaing system

Linux

Buttons

Single button operation

Indicators

Three indicate lights

Web UI

Freely to configure and monitor the receiver by accessing to the web server via USB





 HR842 Windows Tablet Controlller:

Image result for HR842 Windows Tablet Controller







Specifications

System

CPU

Intel Cherry Trail Z8350 1.44Ghz-1.92GHz

Operating system

Windows 10 Home

Storage

4G RAM DDR + 64G EMMC

GNSS

GNSS

GPS L1, GLONASS L1,QZSS

Single point

2.5m

SBAS

2m

Communication

Network

4G FDD-LTE( B1/B3/B5/B7/B8/B20) TD-LTE (B38/B39/B40/B41)

3G WCDMA (900/2100MHz), GSM

Bluetooth

Bluetooth v4.0

NFC

NXP NFC 13.56MHz supporting ISO/IEC 14443A/14443B/

15693/18092/mifare protocol, Reading distance:4cm

WiFi

WiFi 802.11 a/b/g/n 2.4G/5G

Interface

1*Micro USB, 1*USB2.0, 1*micro HDMI

1*DC Charge Jack, 1* headset jack

Multimedia

Display

8 inches 1280*800 IPS screen

Camera

Luminosity:420cd/m2, readable under ordinary sunlight

Front camera 2 megapixel, Rear camera 5 megapixel

Card slot

1*SIM card slot, 1*TF card slot supporting SDHC/SDXC

Electrical

Battery

Build-in 3.7V /8500mAh Li-ion

Operating time

7~8 hours with WIFI

Environment

Waterproof/Dustproof

IP67

Shockproof

1m (MIL-STD-810G)

Operation temperature

-20℃~+60℃

Storage temperature

-30℃~+70℃

Physical property

Size

228mm×145mm×16.5mm

Weight

630g

WHATS INCLUDED:

2 x Galaxy G1C Receiver, GPS + GLONASS + BDS + GALILEO, 440 channels, Without Tilt. WCDMA W/O UHF

Windows 10 Tablet

Tripod

Tribrach

Pole

Controller Bracket

Hard Case and User Manual
